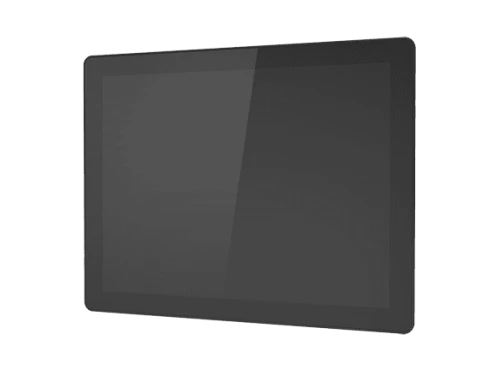

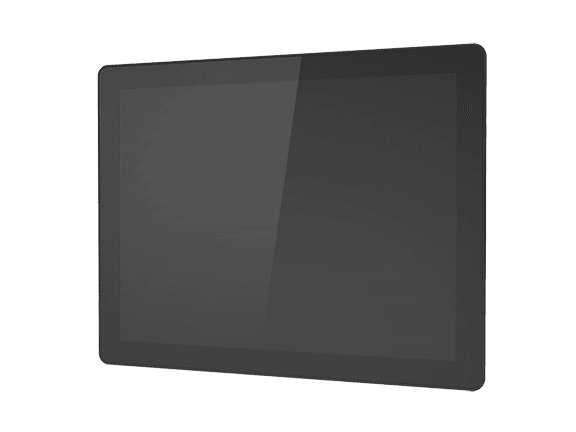

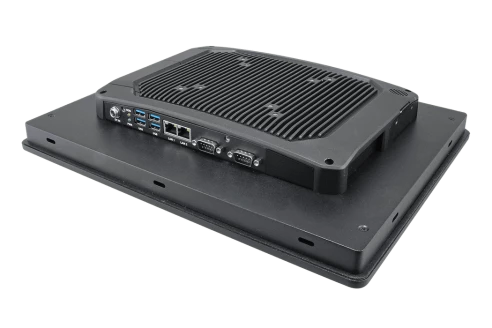

ARC-1538-B-Series
Avalue
SKU: 57488900
15" Fanless Rugged Panel PC, IP65 Front, 1024x768, PCAP Touch, 300cd/m2, Intel 11th Gen Core i7/i5/i3 CPU, Up to 32GB DDR4 RAM, 2x2.5GbE LAN, 4xUSB 3.0, 2xCOM, 1x2.5" Drive Bay, 1xM.2 Key-B, 1xM.2 Key-E, 80-pin IET, Audio, 12-24VDC-In with 72W PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP41
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
300 Cd/m2
Contrast Ratio
2000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Socket
FCBGA 1449
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i219-LM, Intel i225LM
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2230 E, 3052 B, 3042 B, 2242 B
SIM Card slots
Yes, 1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
72 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
350.51 mm
Height
274.51 mm
Depth
56.5 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
20-95%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
MIL-STD-810
MIL-STD-810G Test Method 516.6 Shock
Vibration And Shock
IEC 60068-2-64, IEC 60068-2-32
Dimensions
Net Weight
3.7 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP41
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
300 Cd/m2
Contrast Ratio
2000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Socket
FCBGA 1449
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i219-LM, Intel i225LM
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2230 E, 3052 B, 3042 B, 2242 B
SIM Card slots
Yes, 1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
72 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
350.51 mm
Height
274.51 mm
Depth
56.5 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
20-95%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
MIL-STD-810
MIL-STD-810G Test Method 516.6 Shock
Vibration And Shock
IEC 60068-2-64, IEC 60068-2-32
Dimensions
Net Weight
3.7 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP41
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
300 Cd/m2
Contrast Ratio
2000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Socket
FCBGA 1449
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i219-LM, Intel i225LM
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2230 E, 3052 B, 3042 B, 2242 B
SIM Card slots
Yes, 1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
72 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
350.51 mm
Height
274.51 mm
Depth
56.5 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
20-95%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
MIL-STD-810
MIL-STD-810G Test Method 516.6 Shock
Vibration And Shock
IEC 60068-2-64, IEC 60068-2-32
Dimensions
Net Weight
3.7 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP41
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
300 Cd/m2
Contrast Ratio
2000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Socket
FCBGA 1449
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i219-LM, Intel i225LM
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2230 E, 3052 B, 3042 B, 2242 B
SIM Card slots
Yes, 1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
72 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
350.51 mm
Height
274.51 mm
Depth
56.5 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
20-95%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
MIL-STD-810
MIL-STD-810G Test Method 516.6 Shock
Vibration And Shock
IEC 60068-2-64, IEC 60068-2-32
Dimensions
Net Weight
3.7 kg
Gross Weight
5 kg
