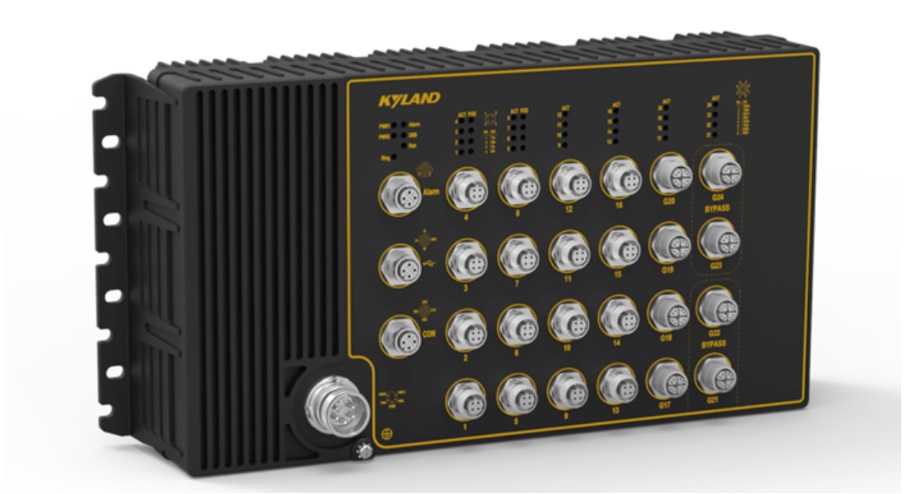

Aquam8124TSN-4GE20T-H6-H6
Kyland
SKU: 11603300
Managed EN50155 Layer 2 Switch, 4x10/100/1000BASE-T(X) M12 ports, 20x10/100BASE-T(X) M12 ports, redundant power inputs 72-110 VDC, EN50155, IP65, -40...+70C
Price on request
Available
Available
Ethernet
Total Ethernet
24
10/100 Mbit/s
20
Type 10/100 Mbit/s
20xM12
10/100/1000 Mbit/s
4
Type 10/100/1000 Mbit/s
4xM12
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Mirror, Flow Control
MAC Table Size
16000
Packet Buffer Size
1000 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
4000
IGMP Groups
8000
Supported Protocols
Managment Protocols
DHCP Server/Client, SNMPv1/v2c/v3, LLDP, Syslog, VLAN, PVLAN, QoS, GVRP, RMON, IGMP, LACP, ARP, GMRP, DHCP Option 82
Reservation protocols
MSTP, STP, DT Ring, DT Ring+, DT VLAN, DRP/DHP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+, IEEE 802.1X Network Access Control, ACL
IEEE Standard
ieee_802.3i, ieee_802.3u, ieee_802.3ab, ieee_802.3z, ieee_802.3ad, ieee_802.3x, ieee_802.1p, ieee_802.1q, ieee_802.1w, ieee_802.1s, ieee_802.1x, IEEE 802.1AS PTP, IEEE 802.1Qbv, IEEE 802.1Qbu, IEEE 802.1Qci, IEEE 802.1CB
High-precision time
Time synchronisation
SNTP Client, IEEE 1588 PTPv2 (HW)
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface
Connectors
Connectors
Console Port M12
System Power Input
Redundant power input
Yes
Input Voltage DC
50..137 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel
Protection Level of Chassis
IP40
Dimensions and weight
Width
380 mm
Depth
92.6 mm
Height
189 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
MTBF
300000 h
Standards and Certifications
Certifications
CE/FCC
EMI
fcc_cfr47_part_15, en55022-cispr22_class_a
Rolling Stock
en_50121, EN 50121-4, EN 50155, EN 45545-2
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
4 kg
Gross Weight
5 kg
