15.6" Industial Panel Display, IP65 Front, 1920x1080, 400cd/m2, PCAP Touch, VGA, DVI-D, DP, 1xUSB for Touch, 24VDC-in Terminal Block
APPD-1600-2
NEXCOM
SKU: 80063300
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
400 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Power LED

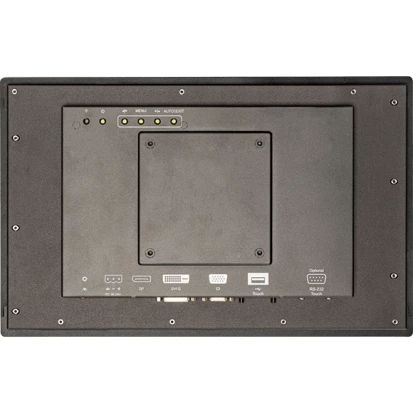

Connectors
Connectors
DVI-I, DB15 VGA, 1xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Temperature (Storage)
-20~+70
Dimensions and weight
Width
388.1 mm
Height
245.3 mm
Depth
51.8 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.8 kg
Gross Weight
4.3 kg
Documentation
