15.6" Fanless Panel PC, IP65 Front, 1920x1080, 400cd/m, PCAP Touch, Intel Alder Lake N97 CPU, 8GB DDR5 RAM, DP, 2x2.5GbE LAN, 3xCOM, 2xUSB 3.2, 1xUSB Type-C DP Alt., Audio, 1xMini-PCIe, 1xM.2 2242 Key-B, 1xM.2 3042/52 Key-B, 1xMiniPCIe, 24VDC-in
APPC-1660-A01
NEXCOM
SKU: 80063100
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
400 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-232/422/485
2
USB Total
4
USB 2.0
1
USB v3.x
3
Audio
Audio Controller
Realtek ALS888S
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
3052 B, 3042 B, 2242 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
Connectors
Connectors

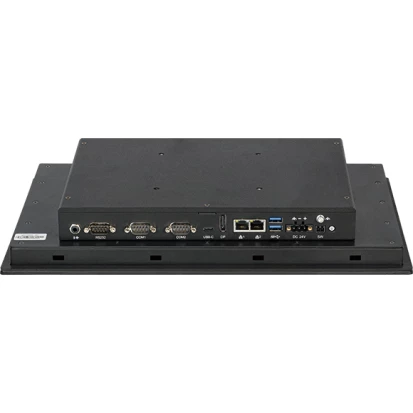

3xDB9, 2xRJ45 Ethernet, 2xUSB, Line Out, Display Port, DC input (terminal block), USB type C
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 11
Dimensions and weight
Width
388.1 mm
Height
245.3 mm
Depth
58.8 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.61 kg
Gross Weight
5.5 kg
