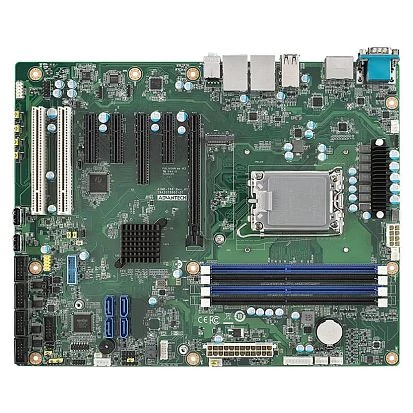

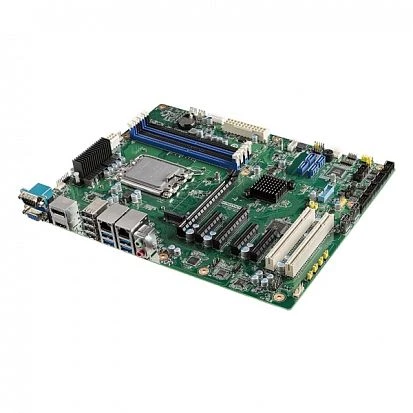

Intel 14/13/12th gen. Core i9/i7/i5/i3/Pentium/Celeron processor with Q670E chipset, 4xDIMM DDR4-3200, DP/HDMI/VGA, 2xGbE LAN, M.2, SATA RAID 0, 1, 5, 10, USB 3.2(Gen2), supports Intel vPro /AMT/ TPM by option PCA-TPMSPI-00A1
AIMB-788G2-00A1
Advantech
SKU: 09655900
Price on request
Available on order
Available on order
System Architecture
Form Factor
ATX
CPU
СPU Generation/Family
Coffee Lake, Alder Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR4
Socket Type
4xDIMM
Maximum Memory
128 GB
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
14
USB 2.0
8
USB v3.x
6
Audio
Audio Controller
Realtek ALC888
Drive interfaces
SATA 3
4
RAID Levels
0, 1, 5, 10
M.2
1
Extension Slots
Total
7
PCI Express x16
1
PCI Express x8
1
PCI Express x4
3
PCI
2
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
4xSATA 3, 2xUSB 2.0, 24-pin ATX, 1x14-pin RS-232/422/485, 3x10-pin RS-232, 2x4-pin USB 2.0, GPIO, 19-pin USB 3.0, 8-pin ATX
Connectors
DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, Display Port
Software
Operating System Compatibility
Windows 11
Dimensions and weight
Width
305 mm
Length
244 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.7 kg
Gross Weight
1.23 kg
