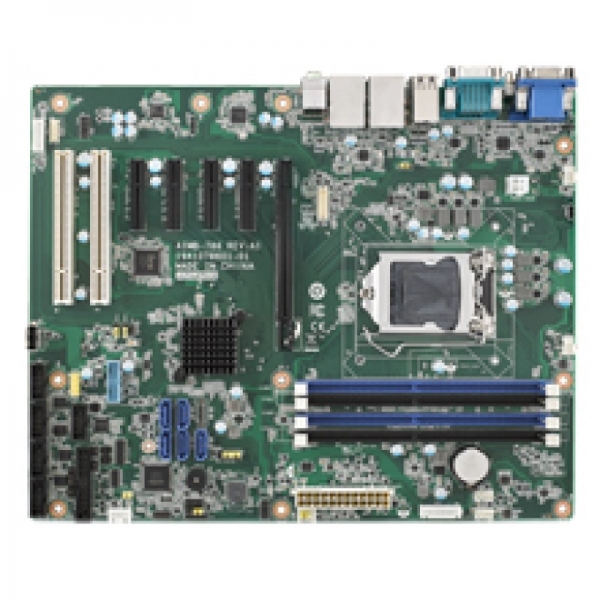

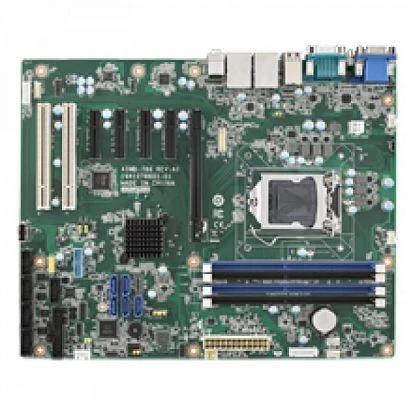

Industrial ATX Motherboard Intel Core i7/i5/i3/Pentium/Celeron 8th Gen, LGA1151, Q370 chipset, 4x288-pin DIMM DDR4 2400/2666 MHz up to 64 Gb Non-ECC, VGA, DVI, DP, 5xSATA III RAID 0/1/5/10, 6xUSB 3.1, 7xUSB 2.0 , 6xCOM, 2xGbE LAN, PS/2
AIMB-786G2-01A1
Advantech
SKU: 09257600
Price on request
Available on order
Available on order
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
4xDIMM
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
13
USB 2.0
7
USB v3.x
6
Drive interfaces
RAID Levels
1, 5, 10
Connectors
Internal Ports
4-pin (12V DC CPU), 24-pin ATX, 5xSATA, USB 3.0
Connectors
DB9, DVI-D, DB15 VGA, 2xRJ45 Ethernet, 8xUSB, Mic In, Line In, Line Out, Display Port
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
304.8 mm
Length
244 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.23 kg
