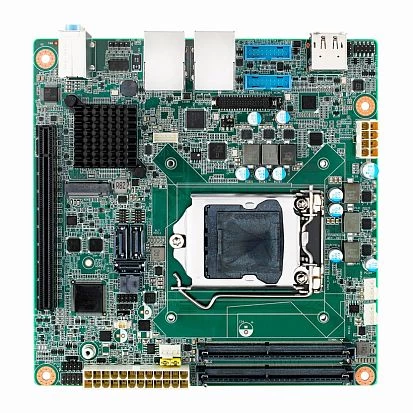

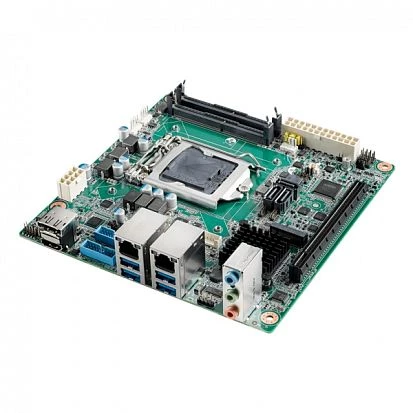

AIMB-277G2-FLA1E
Advantech
SKU: 09211600
Mini-ITX Intel i9/i7/i5/i3 LGA1200 Mini-ITX w/ HDMI2.0a/DP/VGA/LVDS, Intel Q470E, 2x260-pin DDR4 SO-DIMM, 2x COM, Dual LAN, 3 SATAIII, 4 USB3.2 Gen2, 4 USB3.2 Gen1, 2x M.2
Price on request
Available
Available
CPU
СPU Generation/Family
Comet Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1200
Chipset
Chipset
Intel Q470E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA, eDP
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
16
USB 2.0
2
USB v3.x
14
Drive interfaces
RAID Levels
1, 5, 10
M.2
1
Extension Slots
Total
3
PCI Express x16
1
M.2
2
Connectors
Internal Ports
2xCOM, 3xSATA 3, 24-pin ATX, 2x10-pin USB 3.0, 40-pin eDP
Connectors

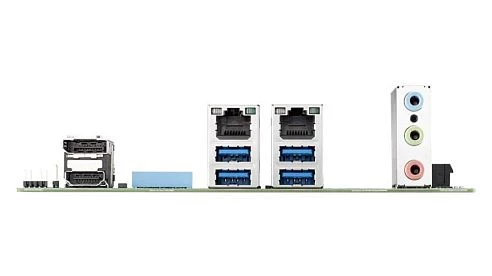

DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line In, Line Out, Display Port
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.37 kg
Gross Weight
1.04 kg
