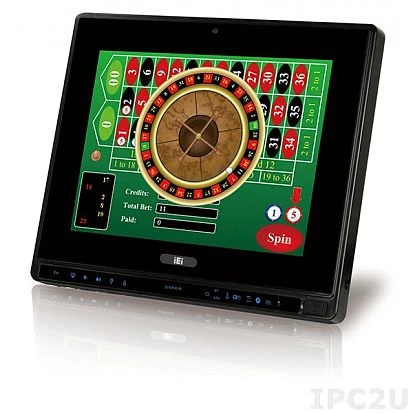

10.4" 400cd/m2 XGA fanless panel PC with Intel Atom cedarview N2800 dual core 1.86GHz,802.11b/g/n,resistive touch screen, 2.0M camera,microphone,2GB DDR3 RAM
AFL2-10A-N28/R/2G
IEI
SKU: 06979400
End-of-life product
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Desktop, Wall, 19" Rackmount, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP64
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
800x600 Dots
Brightness
400 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Atom N2800
Max CPU frequency
1.86 GHz
Chipset
Chipset
Intel NM10
Memory
Form-factor
DDR3
Socket Type
1xSODIMM
Default on Board Memory
2 GB
Maximum Memory
4 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Realtek ALC892
Drive interfaces
MicroSD
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
DB9, RJ45 Ethernet, 4xUSB, Line Out, DC Input, Display Port, 2xRJ45 (COM)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows XP Embedded, Windows Embedded Standard 7
Dimensions and weight
Width
282.5 mm
Height
242.7 mm
Depth
51 mm
Operating Conditions
Operating Temperature
-20..45 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
3.2 kg
Gross Weight
5.5 kg
