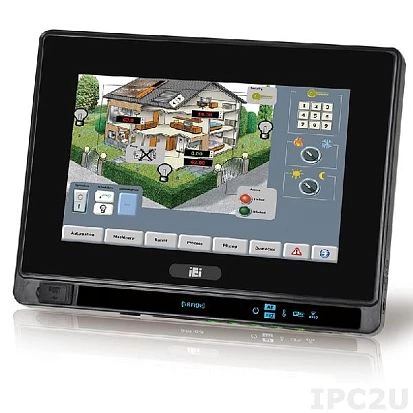

8" Fanless Panel PC, 250cd/m2, XGA 800x600, Intel Atom N2600 1.6GHz, 2GB DDR3 RAM, resistive touch, Gbit LAN, 2xCOM, 4xUSB, DP, Mini USB, Audio, 2.0M camera, WLAN, 2M Webcam, mSATA FS Socket, 9..+36V DC-In, External Power Adapter
AFL2-08A-N26/R/2G-R12
IEI
SKU: 06883700
End-of-life product
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Desktop, Panel, Wall, 19" Rackmount, Wall VESA 75
Protection Level of Front Side (Panel)
IP64
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
800x600 Dots
Brightness
350 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Atom N2600
Max CPU frequency
1.6 GHz
Chipset
Chipset
Intel NM10
Memory
Form-factor
DDR3
Socket Type
1xSODIMM
Default on Board Memory
2 GB
Maximum Memory
2 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
USB Total
5
USB 2.0
3
USB v3.x
2
Audio
Audio Controller
Realtek ALC892
Drive interfaces
mSATA
1
MicroSD
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset, KeyPad, Remote Controller, AT/ATX Switch, CMOS Reset
Connectors
Connectors
DB9, RJ11, RJ45 Ethernet, 4xUSB, Line Out, DC Input, Display Port, 1xMini USB
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
40 W
Software
Operating System Compatibility
Windows XP, Windows XP Embedded, Windows 2000
Dimensions and weight
Width
215 mm
Height
188 mm
Depth
46 mm
Operating Conditions
Operating Temperature
-20..40 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.43 kg
Gross Weight
2.2 kg
