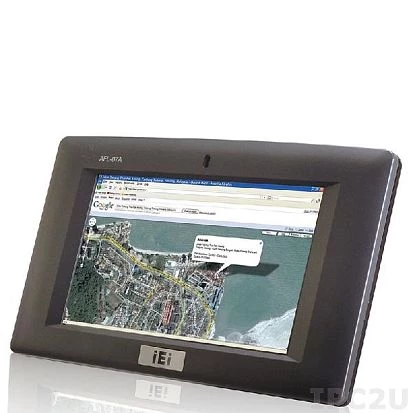

7" 500cd/m2 WVGA LED panel PC with Intel Atom N2600 1.6GHz CPU, resistive touch screen, Intel NM10, 2GB DDR3 RAM, 1x mSATA SSD, CF, 1xCOM, 2xUSB 2.0, 3xRJ45, VGA, WLAN, Audio, power supply 19-28VDC 23W
AFL-W07A-N26/R/2G-R11
IEI
SKU: 06883500
End-of-life product
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Desktop, Panel, Wall, 19" Rackmount, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP64
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
800x480 Dots
Brightness
500 Cd/m2
Contrast Ratio
400~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Atom N2600
Max CPU frequency
1.6 GHz
Chipset
Chipset
Intel NM10
Memory
Form-factor
DDR3
Socket Type
1xSODIMM
Default on Board Memory
2 GB
Maximum Memory
2 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Drive interfaces
mSATA
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
DB9, DB15 VGA, RJ45, 2xRJ45 Ethernet, 2xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9..28 V
Power Consumption
23 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Software
Operating System Compatibility
Windows CE 5.0, Windows CE 6.0, Windows XP Embedded, Windows Embedded Standard 7
Dimensions and weight
Width
226 mm
Height
140 mm
Depth
41 mm
Operating Conditions
Operating Temperature
-10..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
2.5 kg
