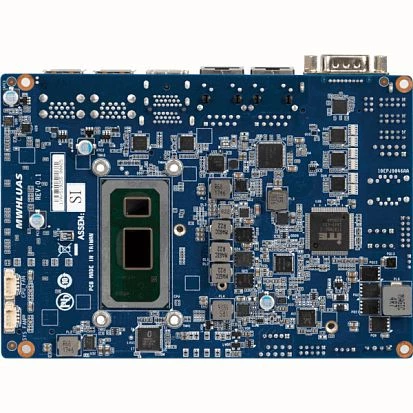

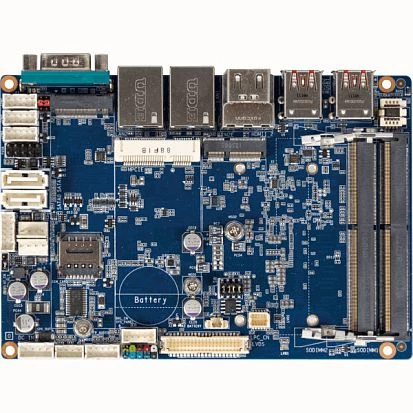

3.5" SBC Board, Intel Core i7-8565U 1.8-4.6GHz CPU, 2x DDR4 SO-DIMM, 2xHDMI 1.4, 2xGbE, 4xUSB 3.1, 2xUSB 2.0, 3xRS-232, 1x RS-232/422/485, SIM Slot, LVDS, 2xSATA, M.2 M Key, M.2 E-Key, Mini-PCIe, 9-36V DC/In
QBiP-8565A
GIGAIPC
SKU: 57037800
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i7
Max CPU frequency
1.8 GHz
Number of CPU
1
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Intel HD Graphics 620
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
3
USB Total
4
USB v3.x
4
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
2xUSB 2.0, 4-pin Power, GPIO, 2xSATA
Connectors

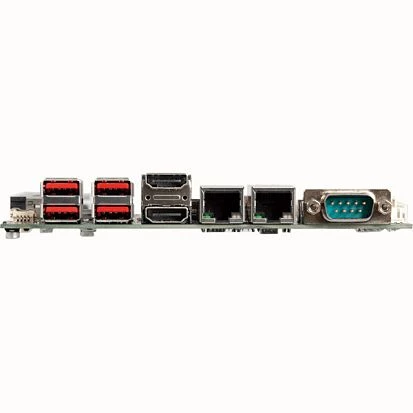

DB9, 2xHDMI, 2xRJ45, 4xUSB
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.15 kg
Gross Weight
0.53 kg
