VMS-APL-Series

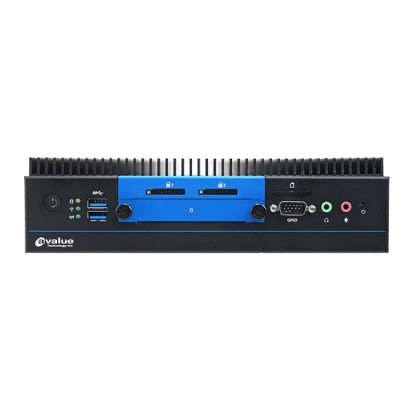

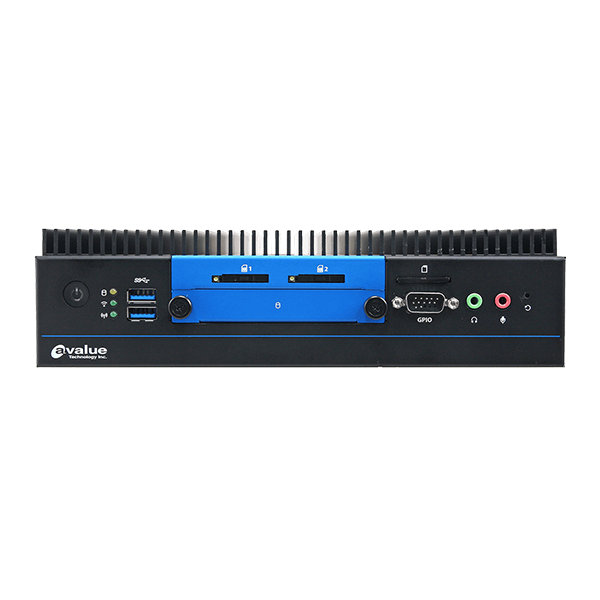

VMS-APL-Series

Avalue
SKU: 57449900
Fanless Vehicle Telematics System, Intel Pentium/Celeron/Atom SoC, Up to 8GB DDR3L RAM, DP, LVDS, 2xGbE LAN, 4xUSB 3.0, 2xCOM, 8bit GPIO, CANBus, SD, NEO-M8N GPS, 1x2.5" Bay, 1xM.2 Key-B, 2xMiniPCIe, 80-pin IET, Audio, 9-36VDC-in
Price on request
Available
Available
System configuration
Price with VAT
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
System configuration
Price with VAT
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP50
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Socket
FCBGA1296
CPU Support Type
Atom, Celeron, Pentium
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, LVDS
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
SD Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
3
M.2
1
M.2 Form Factor
2242 B
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED, WLAN LED, WWAN LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, LVDS, 2xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block), DB15 GPIO, 2xLine Out, 2xMic In, 2xSIM Card Slot
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
239 mm
Height
62 mm
Depth
186 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
20-95%
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark, ISO 7637
Dimensions
Net Weight
2.6 kg
Gross Weight
3.2 kg
