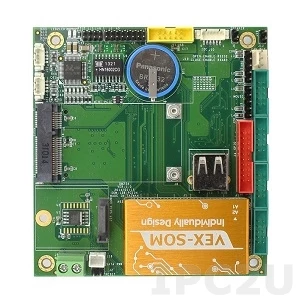

VEX-6254-S
ICOP
SKU: 06832900
Vortex86EX 400MHz ISA CPU Card with 128MB DDR3 RAM, LAN, 4xCOM, 2xUSB, GPIO, Audio, CAN Bus, SD Slot, Operating Temp -20..70 C
Price on request
Available
Available
System Architecture
Form Factor
PC/104
Construction
Type
Fanless
CPU
Processor Installed
Vortex86EX
Max CPU frequency
0.4 GHz
Chipset
Chipset
Vortex86 System-on-Chip
Memory
Form-factor
DDR3
Socket Type
Soldered
ECC
No
Default on Board Memory
0.13 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, TTL, VGA
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
4
RS-232
3
RS-232/485
1
USB Total
2
USB 2.0
2
Audio
Audio Controller
Realtek ALC262
Drive interfaces
SD Slots
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
PC/104
1
Additional Functions
Watchdog timer type
Software
Software
Operating System Compatibility
MS DOS, Windows CE 6.0, Linux OS
Dimensions and weight
Width
96 mm
Length
90 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.06 kg
Gross Weight
0.3 kg
