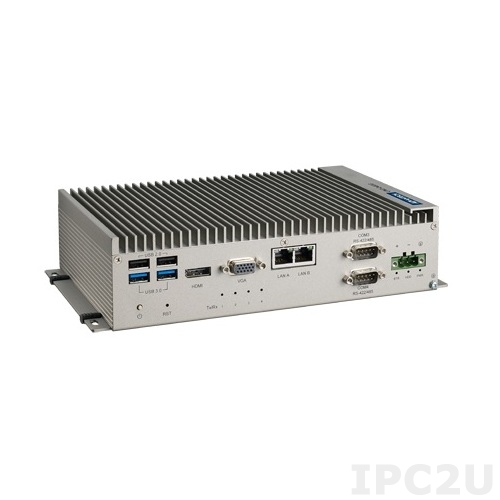

UNO-2483G-434AE
Advantech
SKU: 06804600
Embedded system w/CPU Intel Core i3-4010U, 8GB RAM, VGA, HDMI, 4xGB LAN, 4xCOM, 2xUSB 2.0, 2xUSB 3.0, 2x mPCIe, Audio, IP40, -20...60C
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
Processor Installed
Intel Core i3-4010U
Max CPU frequency
1.7 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 5000
Ethernet
Controller Type
Intel i210-IT, Intel i218-LM 10/100/1000 Mbps
Total Ethernet
4
10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232
2
RS-422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 4xRJ45 Ethernet, 4xUSB, HD Audio, DC Input
System Power Input
Input Voltage DC
19..29 V
Power Consumption
28 W
Software
Operating System Compatibility
Windows 7, Windows 8
Dimensions and weight
Width
252 mm
Height
62 mm
Depth
149 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE/FCC
Safety
CCC, UL, BSMI
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
3 kg
Gross Weight
3.2 kg
