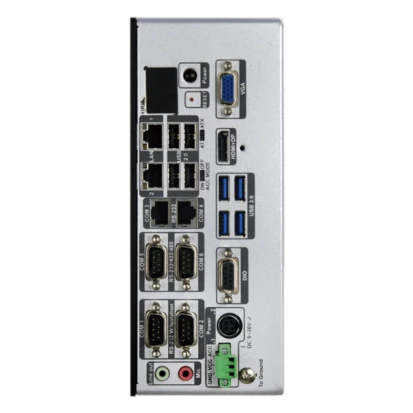

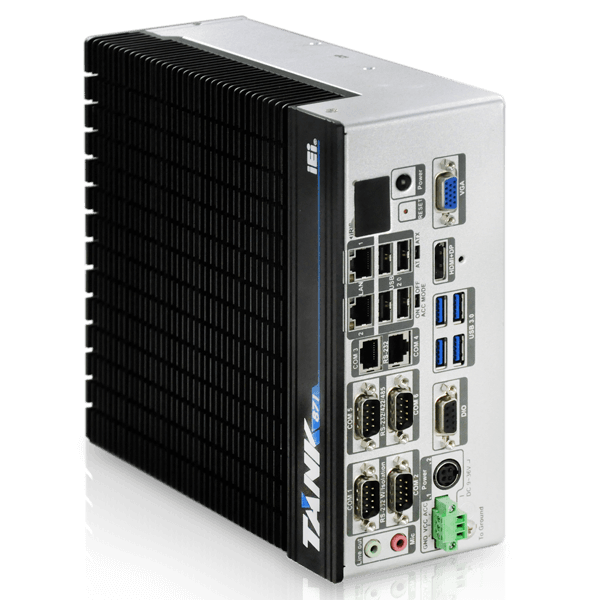

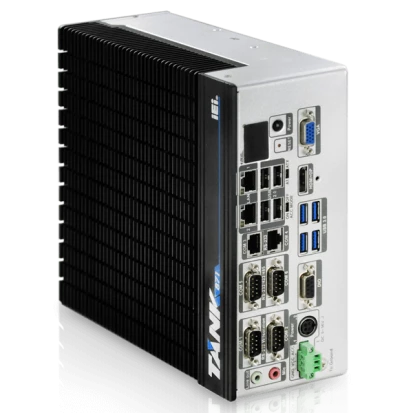

TANK-871-Q170-i7/4G
IEI
SKU: 11304100
Fanless Embedded System, Intel Core i7-6700TE 2.4GHz CPU, Q170 Chipset, 4GB (Up to 32GB) DDR4 RAM, VGA, HDMI+DP, iDP, 2xGbE LAN, 4xUSB 3.2, 4xUSB 2.0, 6xCOM, 8-bit DIO, 2x2.5" Drive Bay, 2xMiniPCIe, Audio, 9-36VDC-in
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i7-6700TE
Socket
LGA1151
Max CPU frequency
3.4 GHz
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i219-LM, Intel i210
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
4xDB9, DB15 VGA, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, DC Input, Display Port, DC input (terminal block), DB9 DIO, 2xRJ45 (COM)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
204 mm
Height
82.2 mm
Depth
255.2 mm
Operating Conditions
Operating Temperature
-20..45 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Dimensions
Net Weight
3.5 kg
Gross Weight
4.5 kg
