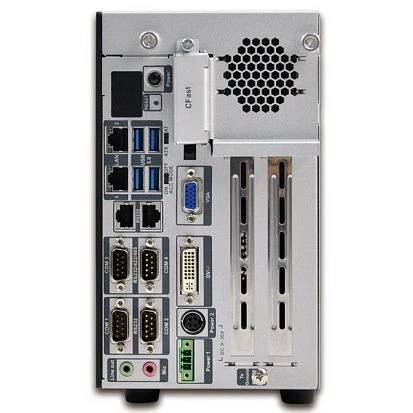

TANK-860-QGW-i5/8G/4A
IEI
SKU: 66445000
Embedded System, Intel Core i5-4400E CPU, 2 x 4GB DDR3 memory, 2 x PCIe and 2 x PCI expansion, Dual GbE, COM, DIO, VGA/DVI-I/DisplayPort, iRIS-2400 optional, with QTS-Gateway, 9 V~36 V DC, RoHS
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i5-4400E
Max CPU frequency
3.3 GHz
Chipset
Chipset
Intel HM86
Memory
Form-factor
DDR3
Socket Type
2xSODIMM
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i217LM 10/100/1000 Mbps, Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
6
RS-232
4
RS-422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
5
PCI Express x16
2
Mini-PCIe/Mini Card
1
PCI
2
Connectors
Connectors
4xDB9, DVI-I, DB15 VGA, 2xRJ45, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, DC input (terminal block), DB9 DIO, 4-pin DC input
System Power Input
Input Voltage DC
9..36 V
Power Consumption
65 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8
Dimensions and weight
Width
154.8 mm
Height
255.2 mm
Depth
205 mm
Operating Conditions
Operating Temperature
-20..60 °C
Shock
5G, 11ms
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810F Test Method 514.5C-2 Vibration
Dimensions
Net Weight
4.5 kg
Gross Weight
6.5 kg
