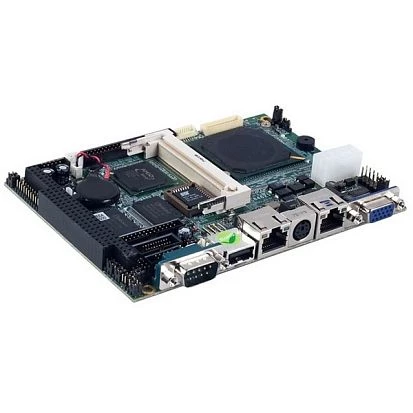

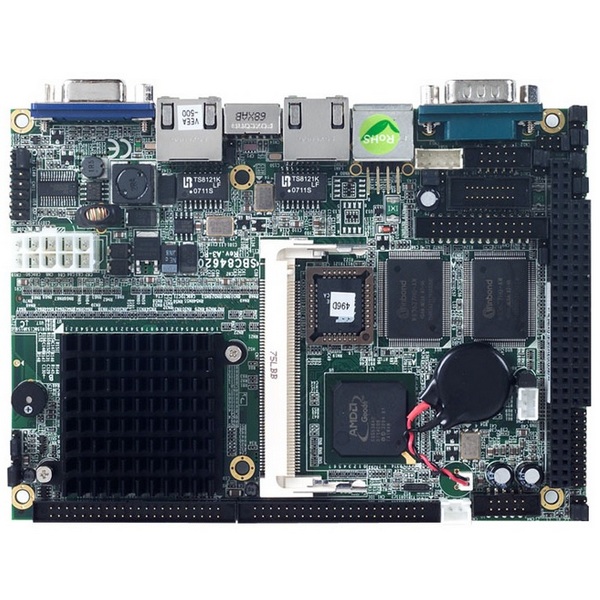

SBC84620VEA-500
AXIOMTEK
SKU: 03536000
3.5" Embedded CPU Card with AMD LX800 500MHz, VGA, LAN, Audio, 4xCOM, 1xPC/104
End-of-life product
System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
AMD LX800
Max CPU frequency
0.5 GHz
Chipset
Chipset
AMD CS5536AD
Memory
Form-factor
DDR
Socket Type
1xSODIMM
Maximum Memory
1 GB
Assembly
Removable
Graphic
Graphic Controller
Geode LX800
Interfaces
TTL, VGA
Ethernet
Controller Type
Realtek RTL8139DL
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB 2.0
4
LPT
SPP, EPP/ECP
Audio
Audio Controller
AC97
Drive interfaces
CompactFlash Slots
1
Extension Slots
Total
2
Mini-PCI
1
PC/104
1
Additional Functions
Watchdog timer type
Hardware
Connectors
Connectors
DB9, DB15 VGA, 1xPS/2, 2xRJ45 Ethernet, 1xUSB
Dimensions and weight
Width
146 mm
Length
104 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.3 kg
