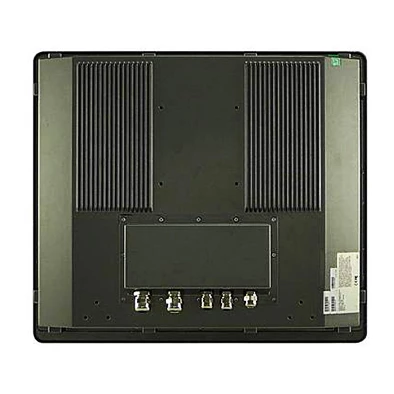

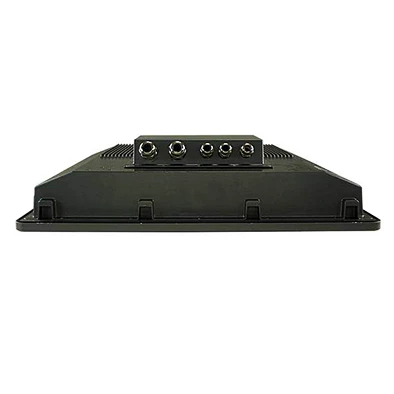

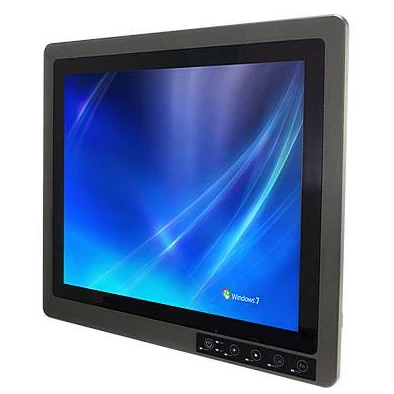

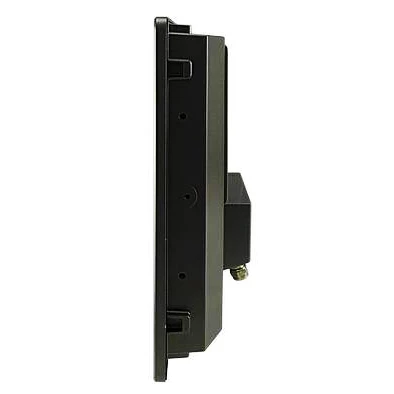

R19IHAT-66EX
Winmate
SKU: 07076000
Rugged Fanless Panel PC 19" TFT LCD (Full IP67), projected capacitive touch, Intel Core-i7 4650U 3.3GHz CPU, 4GB DDR3L, 128GB SSD, 2xIP67 USB 2.0, 3xM12 and 2xM16 cable gland (4xUSB/2xLAN/2xCOM/VGA/Power), power supply 9-36V DC Atex Zone2 certified
End-of-life product
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i7-4650U
Max CPU frequency
3.3 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
3
USB v3.x
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
128 GB
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
2xM12, 3xM16
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows Embedded Standart 8.1, Windows 10
Dimensions and weight
Width
474 mm
Height
410 mm
Depth
111 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Explosion safety
IECEx, ATEX Zone 2 Group II
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Safety
UL/cUL, UL 60950-1, CSA
Dimensions
Net Weight
11 kg
Gross Weight
15 kg
