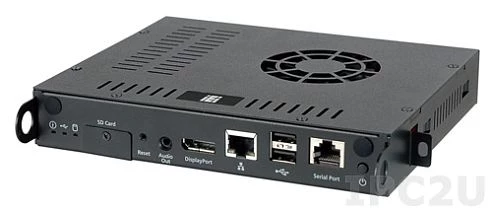

IOPS-Q67-I5-4GB
IEI
SKU: 06406700
OPS Module PC, Intel Dual Core i5-2390T 2.7GHz, 4GB DDR3 SO-DIMM pre-installed, DisplayPort, TDP 65W, mSATA 32GB, Intel GbE, JAE 80-pin connector, USB2.0, COM, SDHC card slot, HD Audio
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded
Type
Fan
CPU
Processor Installed
Intel Core i5-2390T
Max CPU frequency
3.5 GHz
Chipset
Chipset
Intel Q67
Memory
Form-factor
DDR3
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel 82579LM 10/100/1000Mbps
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
1
RS-232
1
USB Total
2
USB 2.0
2
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
SD Slots
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
32 GB
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
RJ45, RJ45 Ethernet, 2xUSB, Audio Out, Display Port
System Power Input
Input Voltage DC
12..19 V
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7
Dimensions and weight
Width
200 mm
Height
171 mm
Depth
30 mm
Operating Conditions
Operating Temperature
0..45 °C
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810F Test Method 514.5C-2 Vibration
Dimensions
Net Weight
1.2 kg
Gross Weight
2.4 kg
