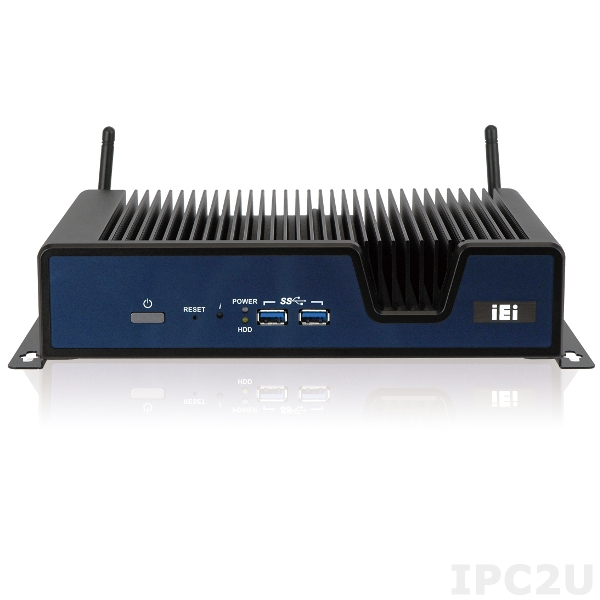

IDS-200W-A70Mi/4G
IEI
SKU: 06544700
Fanless Embedded System, AMD R-series dual-core R-260H 2.1GHz, AMD A70M chipset, TDP 17W, 4Gb DDR3, 4xHDMI, 2xGB LAN, 2T2R 802.11b/g/n wireless, 1xRS-232, 2xUSB 3.0, 2xUSB 2.0, 2xPCIe Mini, 2.5" SATA Bay, SD card slot, SIM slot, 10...30V DC
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall, Wall VESA 75
Type
Fanless
CPU
Processor Installed
AMD R-Series
CPU Support Type
AMD
Chipset
Chipset
A70M
Memory
Form-factor
DDR3
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Ethernet
Controller Type
Realtek 8111E
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC662
Drive interfaces
SD Slots
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Mini-PCIe/Mini Card
2
SIM Card slots
1
Connectors
Connectors

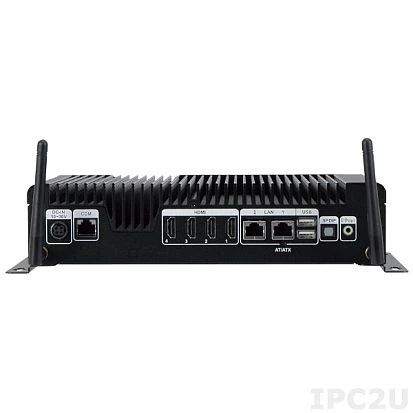

HDMI, RJ45, 2xRJ45 Ethernet, 4xUSB, Audio Out, DC Input, S/PDIF Out
System Power Input
Input Voltage DC
10..30 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8
Dimensions and weight
Width
251 mm
Height
57 mm
Depth
173.35 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
5.24 kg
Gross Weight
6.5 kg
