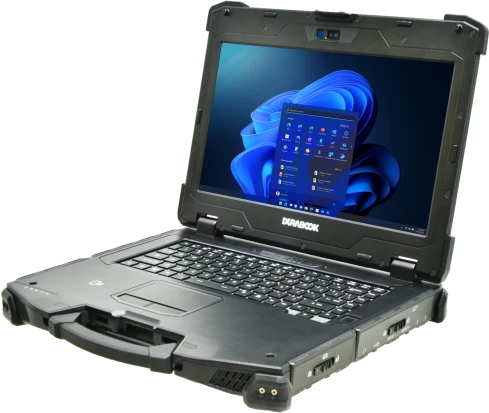

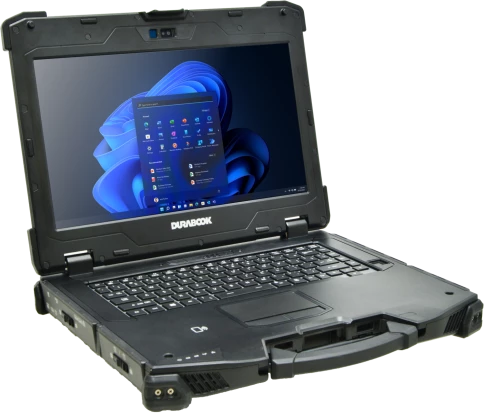

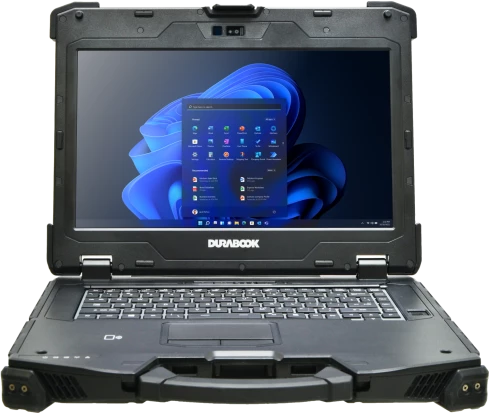

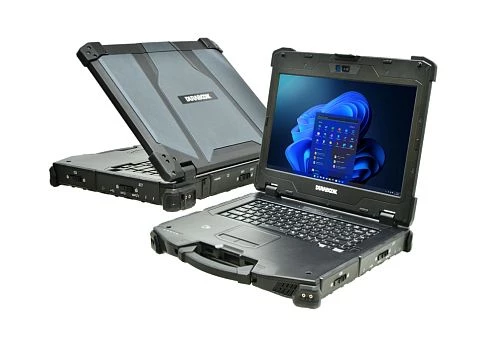

Durabook Z14I-G3
Rugged Notebook 14" FHD (1920x1080), Intel Core i5-125U 3,3GHz, 16GB RAM, 256GB PCIe SSD,HDMI, VGA, WiFi 7, BT 5.4, Express Card 54, Smart Card Reader, 2M camera, 2xRJ45, 2xRS232, Backlit K/B, IP66, Without OS
Price on request
Available on order
Available on order
Construction
Construction Chassis
Rubber, Magnesium Alloy
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP66
Type
Fanless
Display
Display Type
LCD IPS
Diagonal
14 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
1200 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Meteor Lake
Processor Installed
Intel Core Ultra 5 125U
CPU Support Type
Core i5, Core i7
Max CPU frequency
4.3 GHz
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
Default on Board Memory
16 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
HDMI, VGA
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11be
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
3
USB 2.0
1
USB v3.x
2
Drive interfaces
M.2
2
MicroSD
1
Storage Cage
Number Of Cage External
2
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
3042 B
SIM Card slots
2
Additional Functions
Camera Frontside
2 MP
GPS
GPS, Optional
RFID Reader
Optional
Smart Card Reader
Yes
Fingerprint Scanner
Optional
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
Bluetooth
v5.4
Keyboard / Pointing Devices
Type Keyboard
Membrane with backlight
Layout
English, Russian
Type Mouse
TouchPad
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45, 3xUSB, Smart card slot, Express 54 card slot, 2xUSB type C (Thunderbolt 4)
Docking Station
Yes
System Power Input
Input Voltage DC
19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
90 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
6900 mA*h
RunTime Battery 1
12.5 h
Battery 1 Hotswap
Optional
Additional Battery Type
Li‑ion
Additional Battery Capacity
4700 mA*h
RunTime Battery 2
9 h
Additional Battery Hotswap
No
Software
Operating System Compatibility
Windows 11
Dimensions and weight
Width
256 mm
Height
50 mm
Depth
280 mm
Operating Conditions
Operating Temperature
-29..63 °C
Humidity
5-95%
Dimensions
Net Weight
3.49 kg
Gross Weight
4.8 kg
