AR-V6005FL

AR-V6005FL

SKU: 66317800

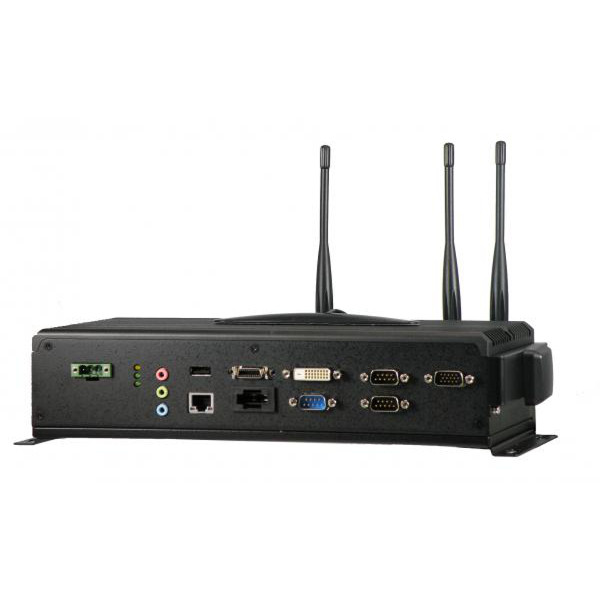

Fanless In-Vehicle Embedded Computer with Intel Atom E640 1GHz, 1GB DDR2 RAM, with smart power onboard
End-of-life product
Construction
Construction Chassis
Metal Chassis
CPU
Processor Installed
Intel Atom E640
Chipset
Chipset
Intel EG20T
Memory
Maximum Memory
2 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
DVI, DB15 VGA
System Power Input
Power Consumption
19 W
Software
Operating System Compatibility
Ubuntu 10.04, Fedora
Dimensions and weight
Width
294 mm
Height
128 mm
Depth
68 mm
Operating Conditions
Vibration
IEC 60068-2-64, 5~500Hz, 3GRMS(CF/SSD), Operating with SSD
Shock
IEC 60068-2-27, 50G 500m/s2 11MS, Operating with SSD
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
3 kg
Gross Weight
4.5 kg
