VTC-1911-IPK

VTC-1911-IPK

NEXCOM
SKU: 56634900

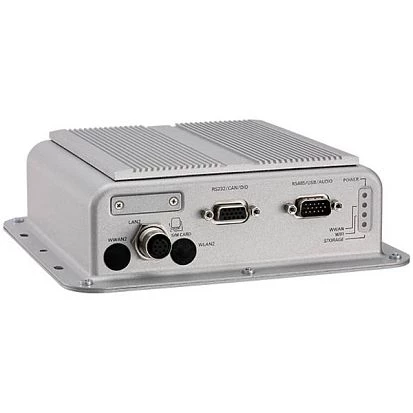

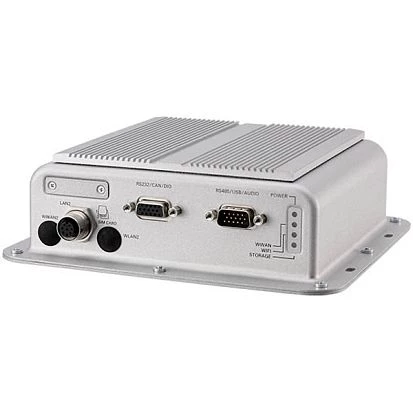

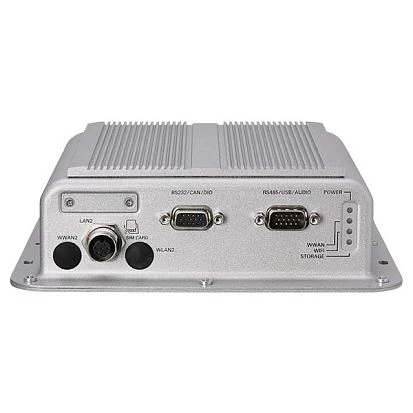

Vehicle Telematics IoT Gateway Intel Atom Bay Trail E3815 1.46GHz, Up to 8GB DDR3L, mSATA, SATA DOM/2.5 SSD, 2x LAN, VGA, 2x RS232, 1xRS485, CAN 2.0B, 3DI/3DO, 1x USB 2.0, Audio, 2xSIM,U-blox NEO-M8N, IP67, -40..+70C Operating Temperature, 9-36V DC
Price on request
Available on order
Available on order
Construction
Construction Chassis
Rubber
Protection Level of Chassis
IP67
CPU
Processor Installed
Intel Atom E3815
Max CPU frequency
1.46 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
2 GB
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
2
RS-485
1
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
SIM Card slots
2
Additional Functions
GPS
GPS
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, Mic In, Line Out, 3xM12
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux OS, Windows 10
Dimensions and weight
Width
56.5 mm
Height
185 mm
Depth
167 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Automotive
e13 Mark
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
1.1 kg
Gross Weight
2 kg
